Wi-Fi HaLow module
-
13.0 mm × 13.0 mm × 2.2 mm
-
Max. data rate of 32.5 Mbps
-
-30°C to +85°C
KEY FEATURES
Wi-Fi HaLow module, 902–928 MHz frequency band
Encryption mode: AES, SHA-256, SHA-384, SHA-512, WPA3
Long-range transmission, low-power consumption, large capacity, and good penetration performance
Fast time-to-market via simple design
Extended temperature range: -40 °C to +85 °C
OVERVIEW

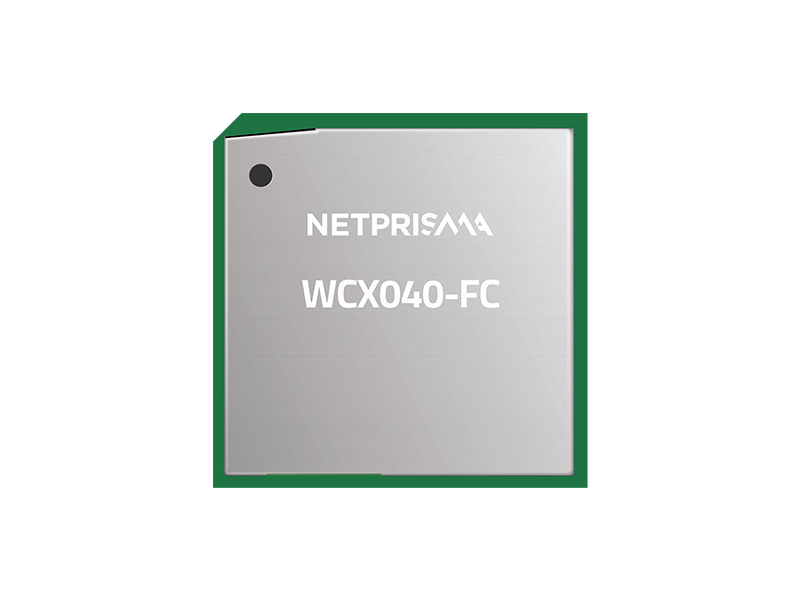

The NetPrisma WCX040-FC is a long-range, energy-efficient Wi-Fi HaLow module that operates within the license-exempt Sub-1 GHz spectrum.
Operating within the 902–928 MHz frequency band and offering channel widths of 1/2/4 and 8 MHz, the WCX040-FC boasts a maximum physical data rate of 32.5 Mbps and a theoretical maximum output power of 21 dBm. Utilizing the Sub-1 GHz band, the module provides superior coverage and penetration, extending the reach of smart home and smart city networks, and facilitating control over IoT devices within a 1km radius.
The WCX040-FC is designed for low power consumption and supports huge device density, theoretically allowing up to 8,191 devices to connect simultaneously to the same Wi-Fi access point. This makes it ideally suited for large-scale IoT device access requirements.
With ultra-compact dimensions of 13.0 mm × 13.0 mm × 2.2 mm, the WCX040-FC significantly reduces the size and design costs of end products, perfectly meeting the needs of size-sensitive applications.
